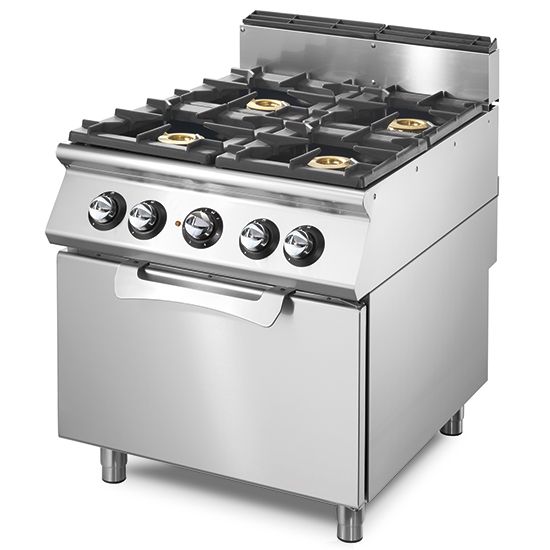

MASTRO 700 LINE GASSPIS + UGN (EL) - 4 BRÄNNARE

Gas range with 4 burners on electric static oven. Side panels, bottom and back made in stainless steel. Rear flue made in enamelled cast- iron. Gas supply by safety taps with thermocouple and pilot burner for the automatic ignition of main burner. Radioused corners top, easy to clean, equipped with high thick enamelled cast- iron hobs resistent to acid, alkali and flame. Rapid burners made in cast iron and brass sealed to the top, nr.2 burners 5,5 kW and nr.2 burners 3.5 kW. Electric oven GN 2/1. Heating by electric upper and lower heating elements with indipendent regulation. Temperature regulation by thermostat, from 50 °C to 300 °C. Safety thermostat. Lamp on control panel to indicate oven heating activation. Cooking chamber made in stainless steel. Oven inner door made in stainless steel with labyrinth seal. Oven power 6 kW. Special design knobs to avoid water penetration in the control panel. Adjustable feet made in stainless steel. Pressed door with ergonomic handle. IPX4 protection rating. Electric power supply VAC 400 3N 50/60 Hz, 6 kW.

TEKNISKA DATA

• Mått: 800 X 730 X 870 mm
• Vikt: 111 Kg
• Anslutning: 380-415 V
• KW el.: 6,000
• Effekt: 18 kW Gas
• Fas: 3F+N
